额定電压1kV绝缘架空電缆
本产品适用于架空固定敷设在交流额定電压0.61kV的電力输配電系统，電缆的敷设温度≥-10℃，電缆的膏曲半径：D小于25mm时大于4D,D為25mm及以上时大于6DD為電缆外径）。
关键词：
所属分类：
新品展示
咨询热線：
产品详细
●执行标准Normative references
GB/T12527-2008.另可根据顾客要求设计制造。
GB/T12527-2008.Wires and cables can be designed and manufactured according to specific requirements of customers.
●使用特性Operation features
本产品适用于架空固定敷设在交流额定電压0.61kV的電力输配電系统，電缆的敷设温度≥-10℃，電缆的膏曲半径：D小于25mm时大于4D,D為25mm及以上时大于6DD為電缆外径）。
The product is applicable of power transmission and distribution systems with AC rated voltage of 0.6kV/IkV as overhead cables.Layout temperature of the cable should not be lower than-10C.Bending radius of the cable should be 4D when D is less than 25mm and should be more than 6D (D is equal to outer diameter of the cable)when D is equal to and higher than 25mm.

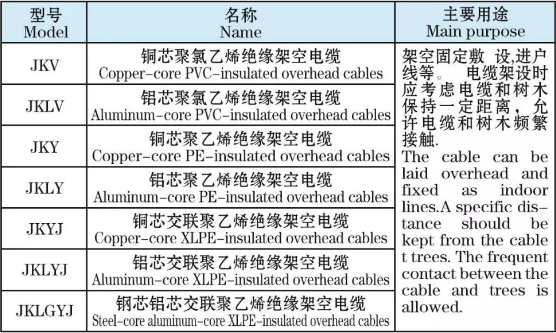

●型号、名称及主要用途Model,,name and main purpose

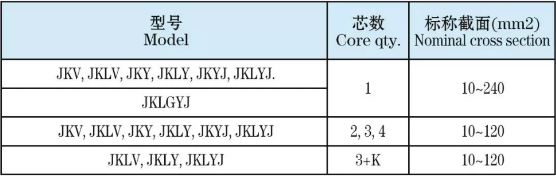

●规格范围Scope of specifications
注：K為带承载的中性导體。根据配電工程要求，任选其中截面与主線芯配搭。
Remarks:Kis the neutral conductor with load Any cross section here can be selected to match main wire cores in response to actual needs of power distribution projects
●電缆基本技术参数Basic technical parameters of cables
